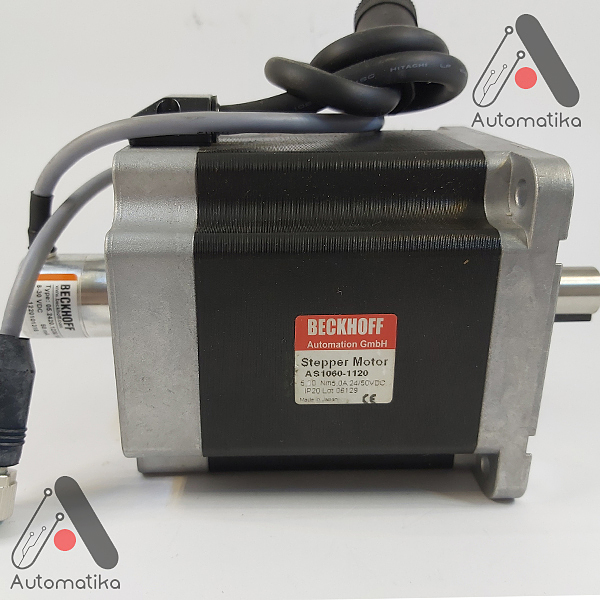

BEKHOFF AS1060-1120

The design of the AS1030/AS1050 and AS1060 stepper motors is intended for flange mounting based on

installation types IM B5, IM V1 and IM V3.

Only the AS1060 is optionally available with groove and feather key. The motors of the AS1000 series can be moved without auxiliary equipment.

Incremental encoders 200 and 1024 increments Only for AS1020/AS1050/AS1060

Rated supply voltage VDC 24 – 50

Rated current A 5,0

Rated power W 68,8

Standstill torque Mo [Nm] 5,0

Winding resistance Ph-Ph R20 [Ω] 0,36

Winding inductance Ph-Ph L [mH] 2,80

Rotor moment of inertia J [kg cm2] 3,0

Resolution [steps] 1.8° / 200 full steps

Weight [kg] 2,85

Cogging torque Mr [Nm] 0.147 ~ 0.215
